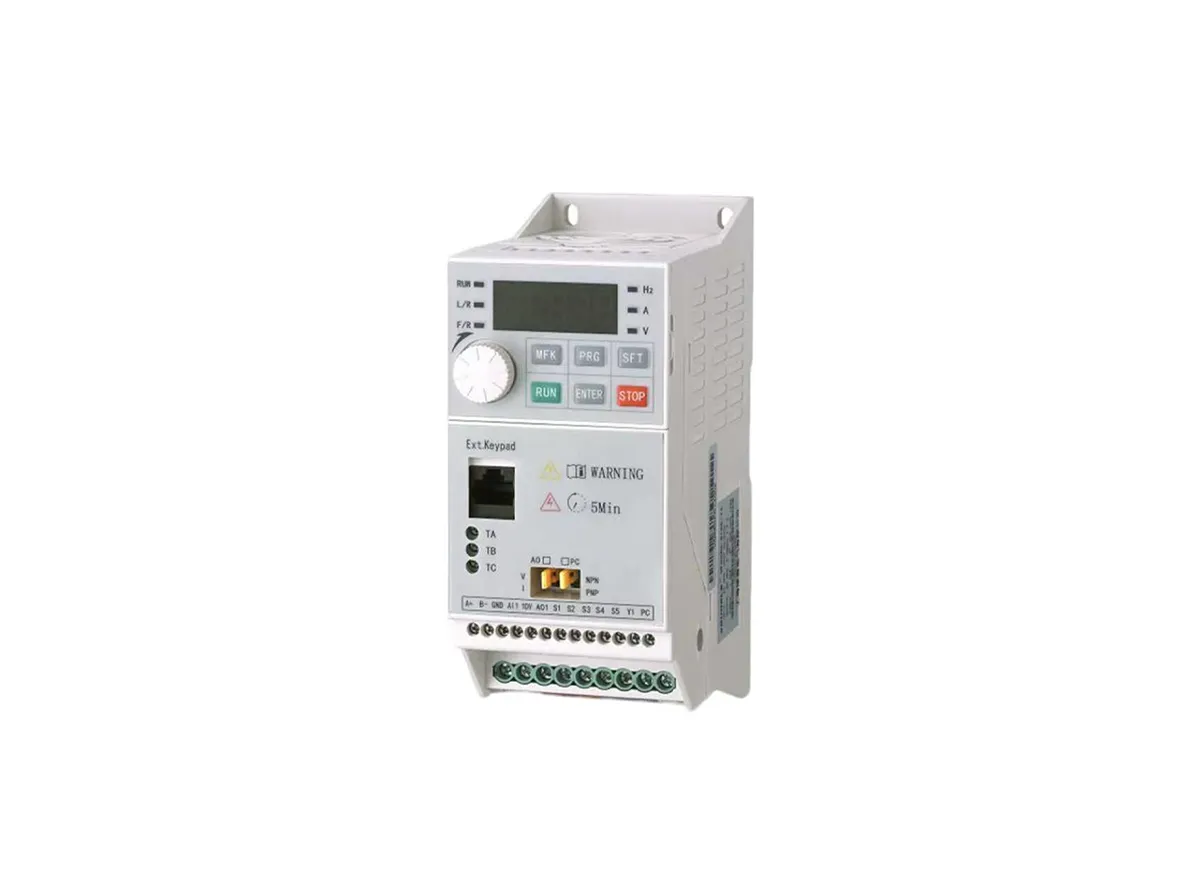

VFD360 Series Economic Universal Type Variable Frequency Drive
VFD360 Series Economic Universal Type Variable Frequency Drive
This series of frequency converters is specifically designed for basic speed regulation applications that prioritize high cost-effectiveness, simple operation, and stability and reliability. While fully retaining core drive performance, it streamlines non-essential functions, offering a compact structure, intuitive operation, and excellent environmental adaptability. This helps various OEM equipment manufacturers and end users achieve motor speed regulation and energy-saving control at lower costs.
This series of frequency converters is specifically designed for basic speed regulation applications that prioritize high cost-effectiveness, simple operation, and stability and reliability. While fully retaining core drive performance, it streamlines non-essential functions, offering a compact structure, intuitive operation, and excellent environmental adaptability. This helps various OEM equipment manufacturers and end users achieve motor speed regulation and energy-saving control at lower costs.
| VFD360 Series technical performance | ||
| Project | Indicators and specifications | |
| Input | Input Voltage | 200V(−10%) ~ 240V(+10%) Single-Phase/Three-Phase 360V(−10%) ~ 480V(+10%) Three-Phase |
| Input Power Frequency | 48 ~ 62Hz | |
| Output | Control Method | VF Control |
| Control Frequency | 0 ~ 300Hz | |
| Frequency Resolution | 0.1Hz | |
| Output Voltage | 0 ~ Input Voltage | |
| Carrier Frequency | 1 ~ 10KHz | |
| Speed Range | 1:50 | |
| Overload Capacity | 150% Rated Current for 1 Minute | |
| Control Features | Torque Boost | 0.0% ~ 30.0% |
| Acceleration/ Deceleration Time |
0.0 ~ 6553.5s(m) | |
| VF Curve | 0: Multi-point V/F Curve 1: 2.0 Power Curve 2: 1.7 Power Curve 3: 1.2 Power Curve |
|
| Jog Control | Jog Frequency Range: 0.00Hz ~ 5.00Hz Jog Acceleration/Deceleration Time: 0.0s ~ 600.0s |
|
| DC Braking | DC Braking Frequency: 0.00Hz ~ Maximum Frequency Braking Time: 0.0s ~ 60.0s Braking Current: 0.0% ~ 100.0% |
|
| Dynamic Braking | Built-in Braking Unit Optional, Braking Power: 0.0% ~ 100.0% | |
| Advanced Features | Built-in PID | Enables closed-loop process control systems, such as constant pressure and temperature control. |
| Built-in Multi-Speed and Simple PLC | Allows up to 16-speed operation through built-in PLC or control terminals. | |
| Built-in 4 Sets of Acceleration/ Deceleration Times |
Allows easy selection of acceleration/deceleration times for different segments. | |
| Protection Functions | Includes overheat, overload, overcurrent, overvoltage, over-speed, overvoltage stall, and short-circuit protection. | |
| Swing Frequency Control | Suitable for textile industry applications requiring swing frequency control. | |
| Fixed-Length Control | Length-based control. | |
| Frequency Reference Sources | Panel digital input, analog input, communication input, PID input, etc. | |
| Command Sources | Panel operation, terminal operation, communication operation. | |
| Fieldbus Communication | RS485 interface, compatible with MODBUS-RTU format. | |
| Operating Conditions | Operating Environment | Indoor use, free from direct sunlight, dust, corrosive gases, flammable gases, oil mist, dripping water, or salt. |
| Altitude | Below 1000m | |
| Ambient Temperature | −10° C to +40° C (derating required for temperatures between 40° C and 50° C). | |
| Humidity | Less than 95% RH, no condensation. | |
| Vibration | Less than 5.9 m/s² (0.6g). | |
| Storage Temperature | −20°C ~ +60°C | |
| IP Rating | IP20 | |
| Pollution Degree | PD2 | |
| Power Distribution System | TN, TT | |

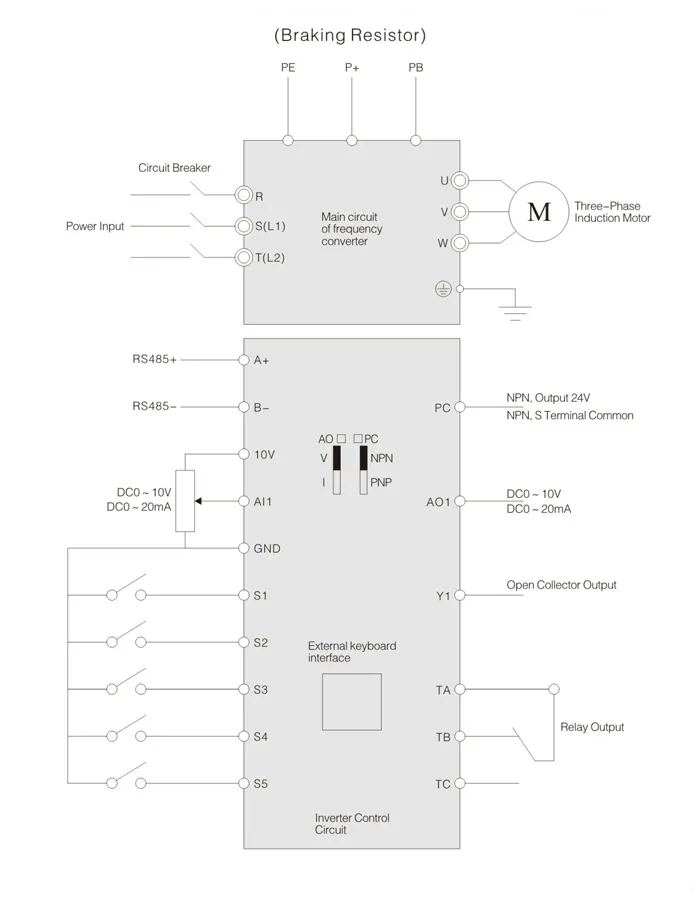

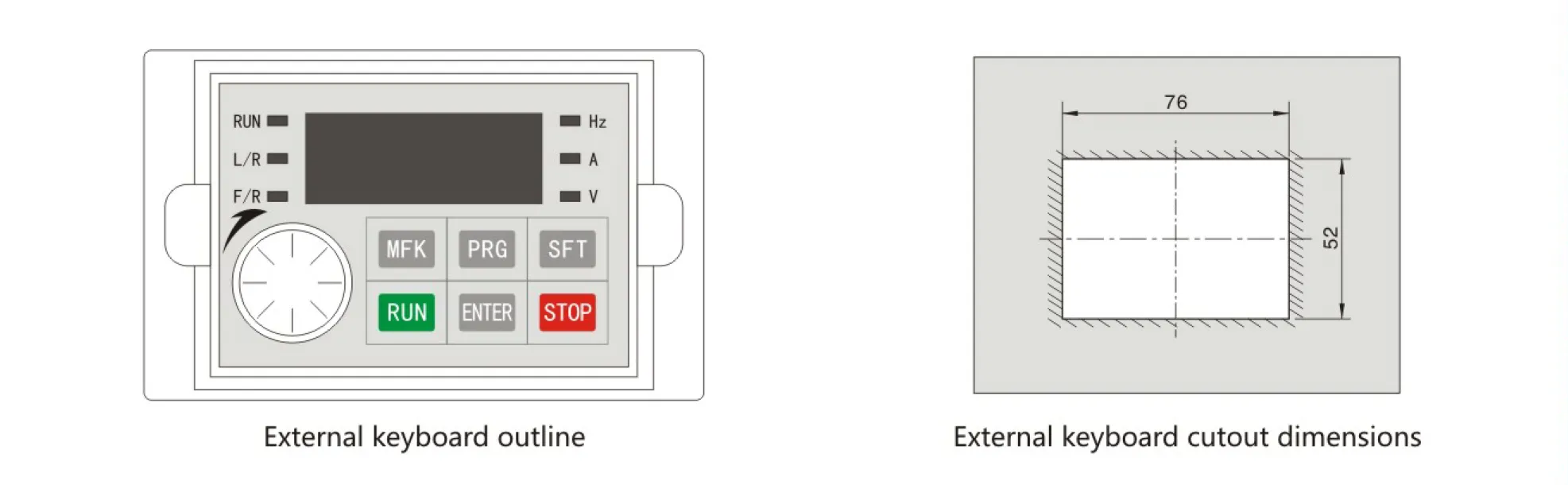

External dimensions and opening dimensions of external keyboard (unit: mm)

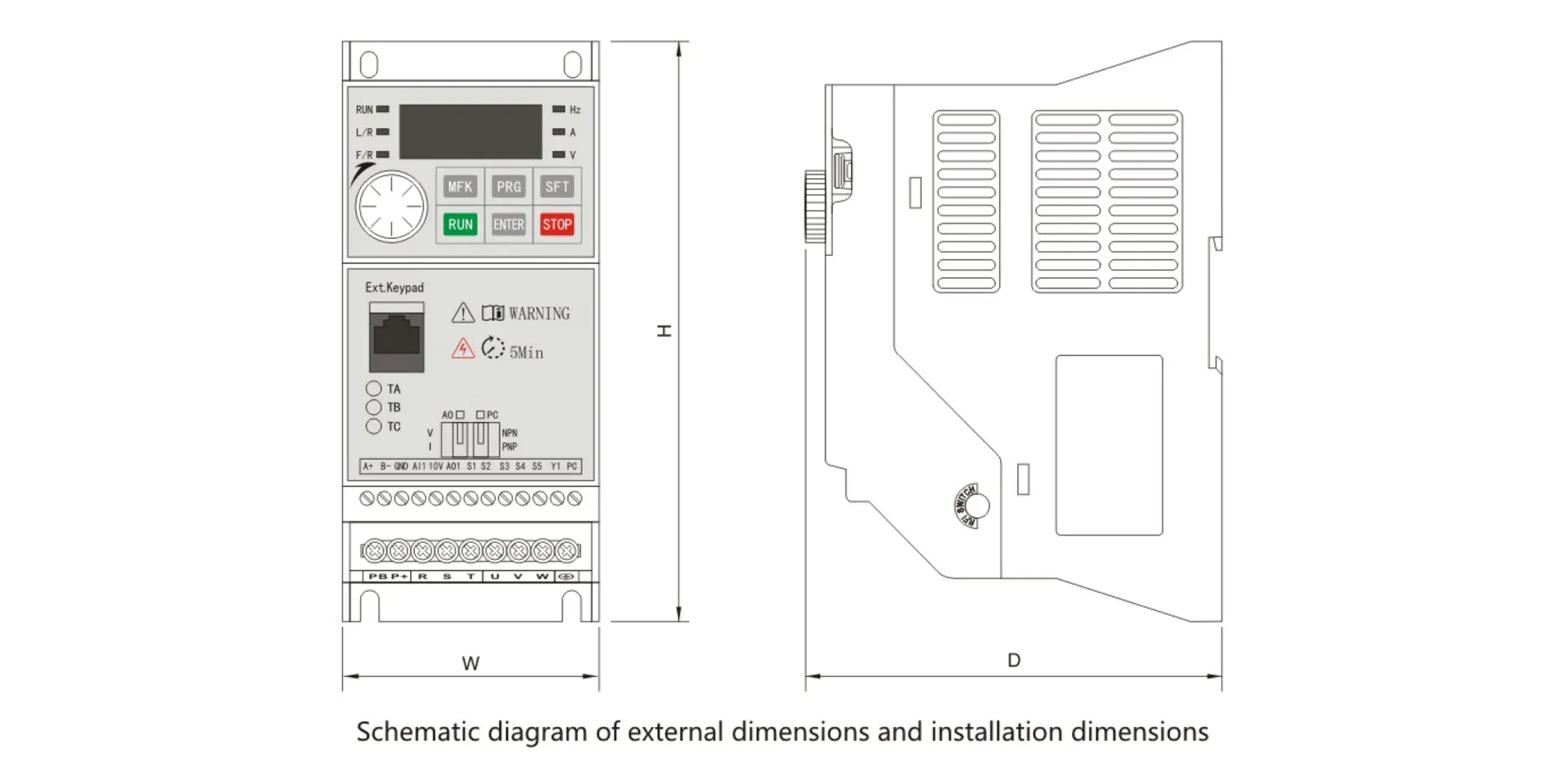

Product appearance diagram and installation hole size
Installation hole size of frequency converter (mm)
| Power(kW) | Dimensions | Mounting Holes |
||
| W(mm) | H(mm) | D(mm) | ||
| 0.4~2.2KW/220V | 68 | 164 | 116 | M4 |
| 3.0~4.0KW/220V | 89 | 217 | 146 | M5 |
| 0.4~2.2KW/380V | 68 | 164 | 116 | M4 |
| 4.0~7.5KW/380V | 89 | 217 | 146 | M5 |
Note: Due to product upgrades, the size has been changed. Please refer to the actual product for accuracy.
